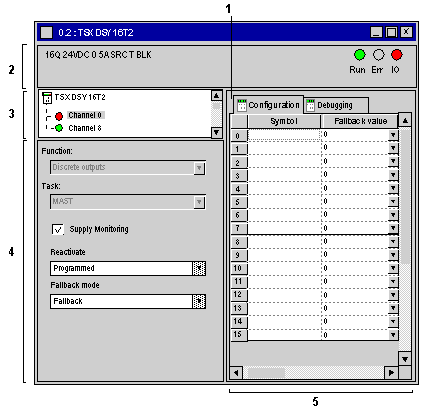

Address
|
Element
|
Function
|
---|---|---|
1
|
Tabs
|
The register tab in the foreground indicates the current mode (Configuration for this example). Every mode can be selected using the respective tab.
The Debug mode is only accessible in online mode.
The Settings mode is only available for the TSX DMY 28RFK module.
|
2
|
Module zone
|
Specifies the abbreviated heading of the module.
In online mode, this zone includes also the three LEDs Run, Err, IO.
|
3
|
Channel field
|
Is used:
|
4
|
General parameters field
|
Allows you to select the associated function and task in groups of 8 channels:
The check box Supply monitoring defines the active or inactive state of the external power supply fault monitoring (available only on some Discrete modules).
The Reactivate and Fallback mode drop-down menus enable you to configure the output reset and output fallback mode (available only on some Discrete modules).
|
5
|
Configuration zone
|
Enables the configuration of parameters for the various channels. This field includes various items, displayed according to the selected Discrete module.
The Symbol column displays the symbol associated with the channel when it has been defined by the user (using the variable editor).
|
