The following is a description of compatibility between sensors and module inputs, and between pre-actuators and Discrete module outputs.
Sensor/Input Compatibility
-
Compatibility between 3-wire sensors and 24 and 48 VDC inputs:
-

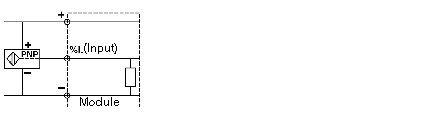

3-wire sensors and IEC 1131-2 compliant type 1 and type 2 positive logic (sink) inputs: all 3-wire PNP inductive or capacitive proximity sensors and photo-electric detectors which have an operating voltage of 24 and 48 VDC are compatible with all positive logic inputs
;
-

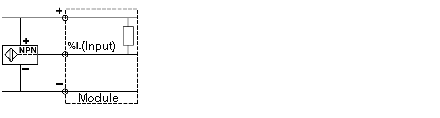

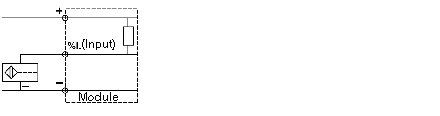

3-wire sensors and negative logic (source) inputs: all NPN 3-wire inductive or capacitive proximity sensors and photo-electric detectors which have an operating voltage of 24 VDC are compatible with negative logic inputs from the Premium range.
-
Compatibility between 2-wire sensors and 24 VDC inputs:
-

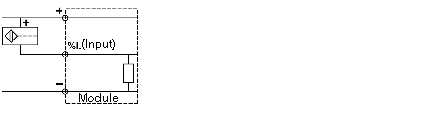

2-wire sensors and IEC 1131-2 compliant type 1 positive logic (sink) inputs: all proximity sensors or other 2-wire sensors with an operating voltage of 24 VDC and with the characteristics described below are compatible with all type 1 positive logic 24 VDC inputs from the Premium range:
Voltage drop in closed state: ≤ 7 V,
minimum switched current: ≤ 2.5 mA,
residual current in open state: ≤ 1.5 mA.
-
2-wire sensors and IEC 1131-2 compliant type 2 positive logic (sink) inputs: all 2-wire proximity sensors with an operating voltage of 24 and 48 VDC and which are IEC 947-5-2 compliant are compatible with all type 2 positive logic 24 and 48 VDC inputs
;
-

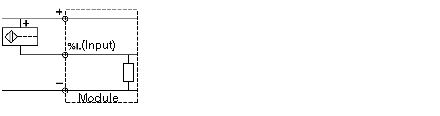

2-wire sensors and negative logic (source) inputs: all proximity sensors or other 2-wire sensors with an operating voltage of 24 VDC direct current and with the characteristics described below are compatible with all negative logic 24 VDC inputs from the Premium range:
Voltage drop in closed state: ≤ 7 V,
minimum switched current: ≤ 2.5 mA,
residual current in open state: ≤ 1.5 mA.
-
Compatibility between 2-wire sensors and 24/48/100..120/200..240 VAC inputs:
-
all IEC 947-5-2 compliant 2-wire AC proximity sensors able to withstand 100...120 VAC are compatible with all type 2 IEC 1131-2 compliant 110..120 VAC inputs,
-
all IEC 947-5-2 compliant 2-wire AC proximity sensors and other sensors able to withstand 200..240 VAC are compatible with all type 2 IEC 1131-2 compliant 220..240 VAC inputs from the Premium range of between 220..240 VAC.
The following table provides a summary of compatibility between sensors and Discrete I/O module inputs.
|
|
Types of input
|
|
Types of proximity sensor
|
24 VDC
Type 1
Positive logic
|
24/48 VDC
Type 2
Positive logic
|
24 VDC
Negative logic
|
24/48 VAC
100..120 VAC
Type 2
|
200..240 VAC
Type 2
|
|
All PNP-type 3-wire (DC) proximity sensors
|
Compatibility
|
Compatibility
|
-
|
-
|
-
|
|
All NPN-type 3-wire (DC) proximity sensors
|
-
|
-
|
Compatibility
|
-
|
-
|
|
Telemecanique or other brand 2-wire (DC) proximity sensors with the following characteristics:
Voltage drop in closed state <= 7 V
Minimum switched current <= 2.5 mA
Residual current in open state <= 1.5 mA
|
Compatibility
|
Compatibility
|
Compatibility
|
-
|
-
|
|
2-wire (AC/DC) proximity sensor
|
-
|
Compatibility
|
-
|
Compatibility
|
Compatibility (1)
|
|
2-wire (AC) proximity sensor
|
-
|
-
|
-
|
Compatibility
|
Compatibility (1)
|
|
|
|
Legend:
|
|
(1)
|
In the nominal voltage range of 220..240 VAC.
|
|
DC
|
DC voltage operation.
|
|
AC
|
AC voltage operation.
|
|
AC/DC
|
AC or DC voltage operation.
|
Compatibility of Pre-Actuators with Outputs
-
Compatibility of DC pre-actuators and outputs:
-
comply with the output’s maximum current and maximum switching frequency as specified in the table of characteristics,
-
where low consumption pre-actuators are used, special attention must be paid to the leakage current of the idle output, to ensure that the following inequation is satisfied:
I nominal ≥ (50 x I leakage)
given that:
I nominal = current consumed by the pre-actuator,
I leakage = leakage current in idle output state.
-
Compatibility of tungsten filament lamps and transistor outputs (static current):
-
for outputs with protection against short circuits, the maximum power of the tungsten filament lamps specified in the table of characteristics must be complied with. If not, the lamp’s pick-up current might cause a tripped output at the time of power-up.
-
Compatibility of AC pre-actuators and relay outputs:
-
Compatibility of lamps and bidirectional triode thyristor outputs:
-
Compatibility of AC pre-actuators with relay bidirectional triode thyristor outputs:
-
comply with the specified maximum current,
-
where low consumption pre-actuators are used, special attention must be paid to the leakage current of the idle output, to ensure that the following inequation is satisfied:
I nominal ≥ (50 x I leakage)
given that:
I nominal = current consumed by the pre-actuator,
I leakage = leakage current in idle output state.
