TELEFAST 2 ABE-7R16T212/P16T212 connection bases

At a Glance

This is a description of the actuator connections on:

TELEFAST 2 ABE-7R16T212 base, 16 relay outputs, 1 F, with distribution of the 2 polarities by 8 channel group, with electromagnetic relay;

TELEFAST 2 ABE-7P16T212 base, 16 relay outputs, 1 F, distribution of the 2 polarities by 8 channel group, relay not provided.

Illustration

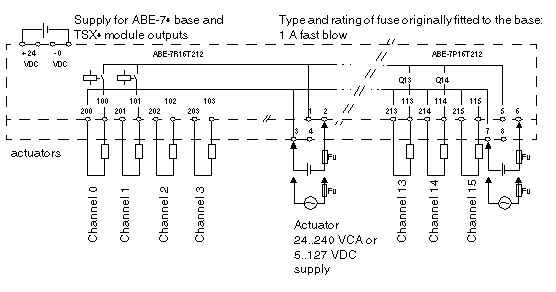

Description of the connection terminal blocks.

Illustration

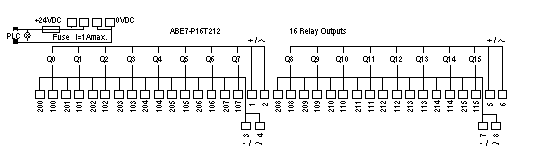

Output connection functions.

Fu

Fuse rating according to the load.

NOTE: Protection of relay contacts:

a protection circuit must be mounted onto the terminals of each actuator:
- RC or MOV circuit in the case of alternating current;
- discharge diode for direct current.
