TELEFAST 2 ABE-7R16T210/P16T210 connection bases

At a Glance

This is a description of the actuator connections on:

TELEFAST 2 ABE-7R16T210 base, 16 relay outputs, 1 F, potential free contact, with electromagnetic relay;
TELEFAST 2 ABE-7P16T210 base, 16 relay outputs, 1 F, potential free contact, relay not provided.

Illustration

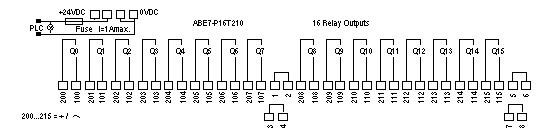

Description of the connection terminal blocks.

Illustration

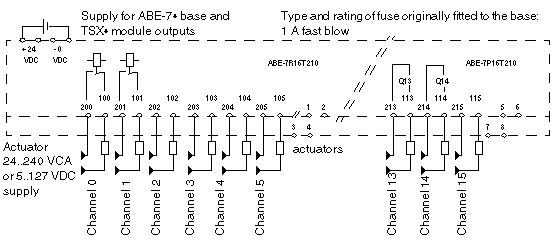

Output connection functions

NOTE: Provide one protection fuse per actuator or per group if fed from the same voltage.

Protection of relay contacts:

a protection circuit must be mounted onto the terminals of each actuator:
- RC or MOV circuit on alternating current;
- discharge diode for direct current.
