Sensor connections on non removable static relay input adaptation bases ABE-7S16E2B1/E2E1/E2E0/E2F0/E2M0
(Original Document)
About us
At a Glance
This is an overview of the sensor connections on TELEFAST 2 bases.
Illustration

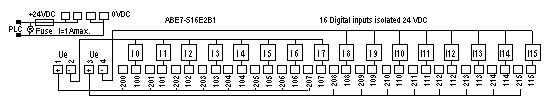

Description of the connection terminal blocks.
Illustration

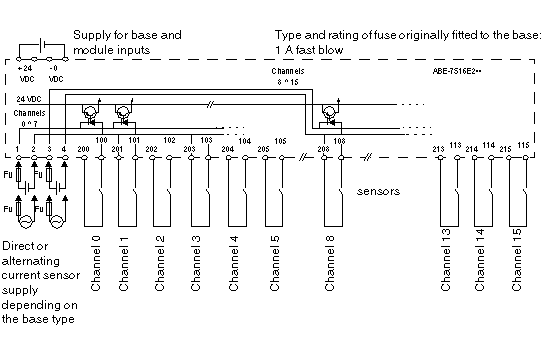

Input function connections.
Fu
Fuse rating according to the load.
NOTE: Input protection by 2 A fast-blow fuse.
