Actuator connections on non removable relay output adaptation bases ABE-7R08S210/16S210.
(Original Document)
About us
At a Glance
This is an overview of the actuator connections on TELEFAST 2 ABE-7R08S210/16S210 bases, 8 or 16 relay outputs, 1 F, potential free contact.
Illustration

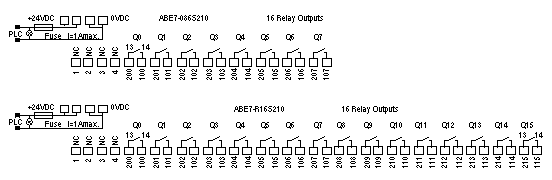

Description of the connection terminal blocks.
Illustration

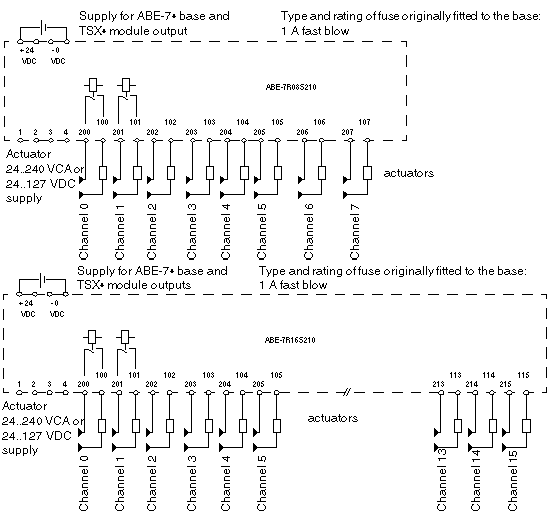

Output connection functions.
NOTE: Protection of relay contacts:
  • a protection circuit must be mounted onto the terminals of each actuator:
    • RC or MOV circuit on alternating current;
    • discharge diode for direct current.
