TELEFAST 2 ABE-7H16S43 Connection Base
(Original Document)
About us
At a Glance

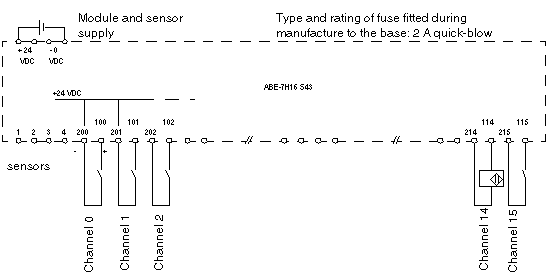

This is an overview of the sensor connections on TELEFAST 2 bases.
Illustration
Description of the connection terminal blocks.
Illustration

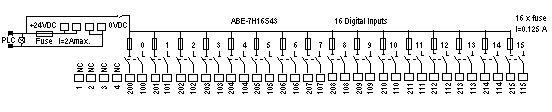

Input function connections.
Functionality per channel:
0.125 A fuse fitted during manufacture
isolator cuts the ‘+’ and the channel signal simultaneously
NOTE:
Terminals 200...215 are connected to the ‘+’ polarity of the supply.
