TELEFAST 2 ABE-7H16F43 Connection Base
(Original Document)
About us
At a Glance

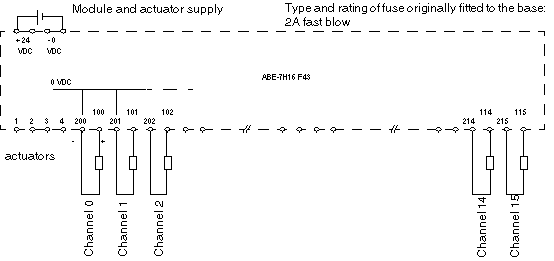

This is an overview of the actuator connections on TELEFAST 2 bases.
Illustration
Description of the connection terminal blocks.
Illustration

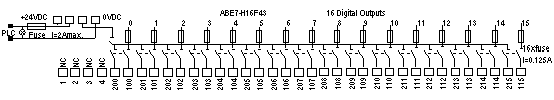

Output connection functions.
Functionality per channel:
original fitted 0.125 A fuse
isolator cuts the ‘-’ and the channel signal simultaneously
NOTE:
Terminals 200..215 are connected to the ‘-’ polarity of the supply.
