TELEFAST 2 ABE-7H16R30/16R31 Connection Bases

At a Glance

This is an overview of the sensor connections on TELEFAST 2 bases.

NOTE: The bases are manufactured with a general-purpose, quick-blow fuse rated 2 A. To guarantee optimum protection, this fuse should be rated according to the application and the maximum current allowable in the base.

Type and rating of fuse to be fitted to the base:

input functions: 0.5A quick-blow

Illustration

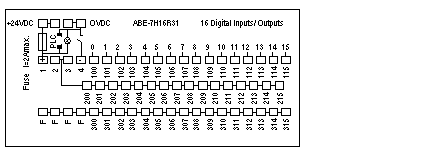

Description of the connection terminal blocks.

Illustration

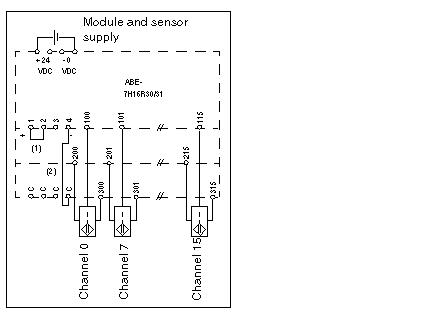

Input function connections.

Connecting the common for sensors:

to create the shared sensor supply:
- position the jumper wire (1) on terminals 1 and 2: terminal blocks 200 to 215 will be at the "+" of the supply
- link terminal 4 to one of the C terminals of the 3rd level (2): terminal blocks 300 to 315 will be at the "-" of the supply

NOTE: The ABE-7H16R30/R31 base can also be used for connecting actuators.
