This is an overview of the sensor and actuator connections on the TELEFAST 2 base.
NOTE: The base is manufactured with a general-purpose, quick-blow fuse rated 6.3 A. To guarantee optimum protection, this fuse should be rated according to the application (connection to input or output functions) and the maximum current allowable in the base.
Type and rating of fuse to be fitted to the base:

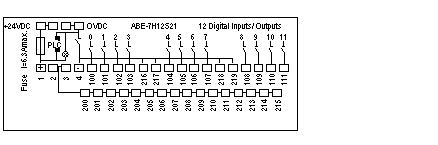

Description of the connection terminal blocks.

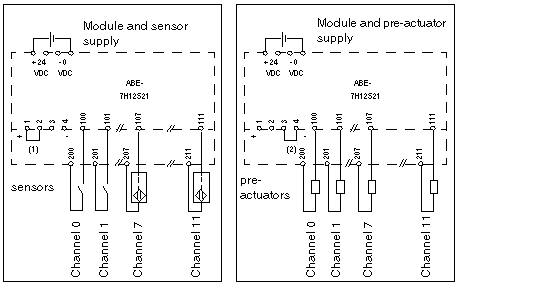

Connections for input and output functions.
Connecting the common for sensors:
-
In order to create the shared sensor supply, position the jumper (1) on terminals 1 and 2: terminals 200 to 215 will be on the ‘+’ of the supply (positive logic inputs).
Terminals 216, 217, 218 and 219 are linked to the ‘-‘ polarity.
Connecting the common for pre-actuators:
-
In order to create the shared supply for the pre-actuators, position the jumper (2) on terminals 3 and 4: terminals 200 to 215 will be on the ‘-’ of the supply (positive logic outputs).
Terminals 216, 217, 218 and 219 are linked to the ‘-‘ polarity.
