Safety outputs
(Original Document)
About us
General
Outputs are wired to the 6-point screw terminal block for the TSX PAY 262 module.
TSX PAY 262 module

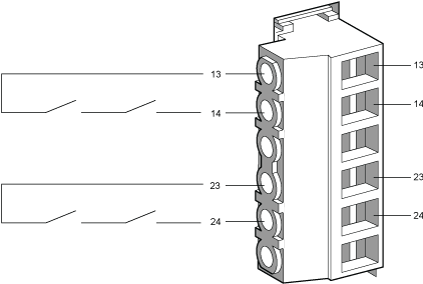

Wiring diagram for TSX PAY 262:
13 and 23
Independent supply input
14 and 24
Safety outputs
NOTE:
Cross-section of wires:
with termination: 2 x 1 mm
2
wires or 1 x 1.5 mm
2
wire
without termination: 1 x 2.5 mm
2
wire
