This section shows the different ways of wiring the safety system reactivation function.
Wiring diagram for automatic reactivation (with protective cover):
Once every SS ESD or PS is unlocked, it is possible to choose whether or not to monitor manual reactivation of the safety system.

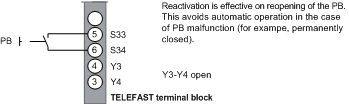

With reactivation button monitoring (recommended wiring):
Without reactivation button monitoring:
