General

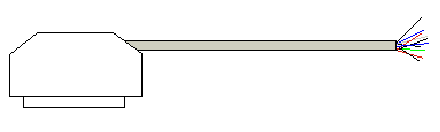

The TSX CPP 301 cable is a non-protected multiconductor cable made up of 32 conductors (22 gauge, 7 threads).
One of its ends is fitted with an unremovable male HD 44-pin Sub-D connector, with the other made up of semi-stripped free threads: The sheath has been cut but the conductor is not stripped.
The cable is 3 m (9.8 ft) long.
Connections
The following table shows the TSX CPP 301 cable’s markings. Each thread is marked according to a color code, as per EN 47100. The first color denotes the basic color of the conductor isolator, with the second denoting the color of the printed ring:
Marking
Sub-D connector pin
DIN 47100 color
Marking
Sub-D connector pin
DIN 47100 color
A1
16
Yellow/Brown
S122/S131
32
White/Blue
A2/Y4
30
White/Pink
S132/141
3
Green
B1
17
White/Gray
S142/S151
34
White/Red
S01
31
Pink/Brown
S152/S161
5
Gray
S02/S11
2
Brown
S162/S171
36
White/Black
S12/S21
33
Brown/Blue
S172/S181
7
Blue
S22/S31
4
Yellow
S182/S191
38
Gray/Green
S32/S41
35
Brown/Red
S192/S201
9
Black
S42/S51
6
Pink
S202/S211
40
Pink/Green
S52/S61
37
Brown/Black
S212/S221
11
Gray/Pink
S62/S71
8
Red
S222/S231
42
Green/Blue
S72/S81
39
Yellow/Gray
S232
13
White/Green
S82/S91
10
Violet
S33/Y2
15
White/Yellow
S92/S101
41
Yellow/Pink
S34
28
Gray/Brown
S102/S111
12
Red/Blue
Y1
44
White (1)
S112
43
Yellow/Blue
Y3
14
Brown/Green
S121
1
White (1)
Legend:
(1)
The white wire is used for both S121 and Y1 signals.
NOTE: It is not possible to transfer the ground (GND) with the TSX CPP 301 cable.
The TSX CPP 301 cable is not supplied with the module.
