Physical description of the safety modules
(Original Document)
About us
Introduction
The TSX PAY 262 modules are in standard Premium PLC interface format. They occupy a single slot.
Illustration

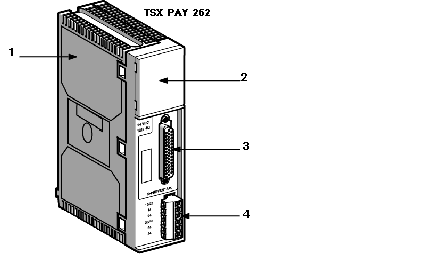

The following diagram shows the safety modules:
Elements
The following table gives a description of the different elements of the safety modules:
Number
Description
1
IP20 housing providing support and protection for the circuit board.
2
Operating mode, fault and safety system display block
3
High Density (HD) 44-pin Sub-D connector for connecting the safety system.
4
Removable screw terminal block for connecting safety outputs
