Connecting the TSX DSY 32T2K module
(Original Document)
About us
At a Glance
The
TSX DSY 32T2K
module comprises 32 positive logic transistor output channels for direct current.
This module is fitted with 2 male
HE10
connectors:
connector A for outputs 0 to 15;
connector B for outputs 16 to 31.

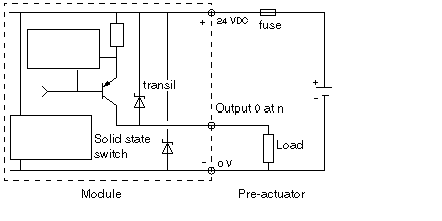

Circuit diagram
The circuit diagram for an output is shown below.

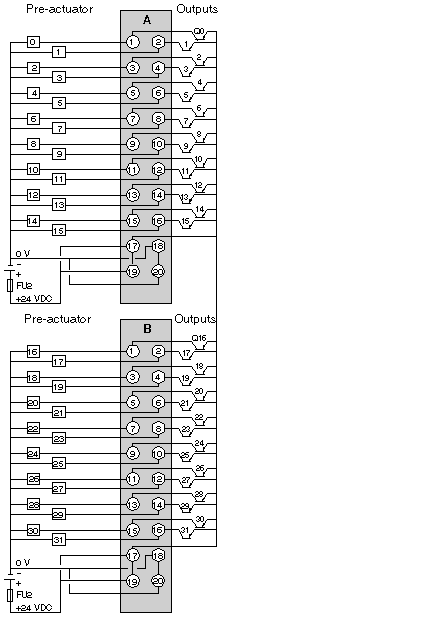

Module connection
The diagram below shows the connection of the module to the pre-actuators.
FU2
2 A quick-blow fuse.
NOTE:
It is compulsory to connect:
the + 24 VDC to terminals 17 and 19;
the 0 V to terminals 18 and 20.
