Connecting the TSX DSY 08R5A module
(Original Document)
About us
At a Glance
The TSX DSY 08R5A module comprises 8 protected relay output channels for 5 A thermal current.
This module is equipped with a removable 20 post screwed connection terminal block, allowing outputs to be connected:
Circuit Diagram

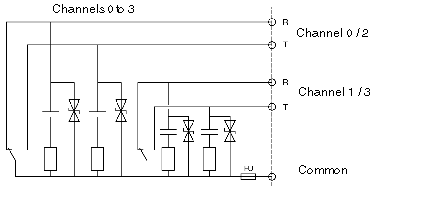

The circuit diagram for an idle / operation output is shown below.
R
Idle
T
Operation
FU
Quick-blow interchangeable 6.3 A fuse 1 fuse per common.
Circuit Diagram

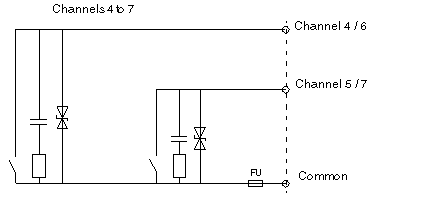

The circuit diagram for an operation output is shown below.
FU
Quick-blow interchangeable 6.3 A fuse 1 fuse per common.
Module connection

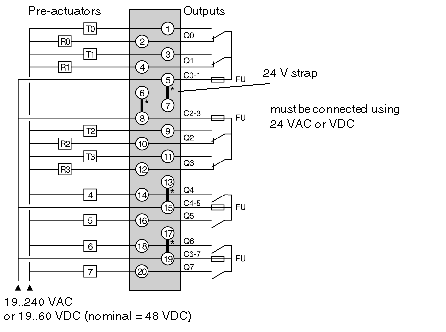

The diagram below shows the connection of the module to the pre-actuators.
FU
6.3 A quick-blow fuse
