The TSX DSY 08R5 module comprises 8 relay output channels for 3 A thermal current.
This module is equipped with a removable 20 post screwed connection terminal block, allowing outputs to be connected:

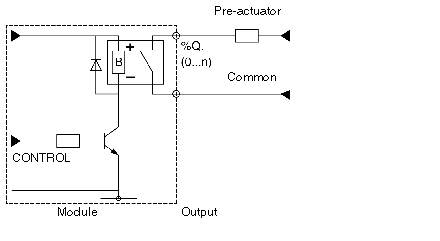

The circuit diagram for an output is shown below.

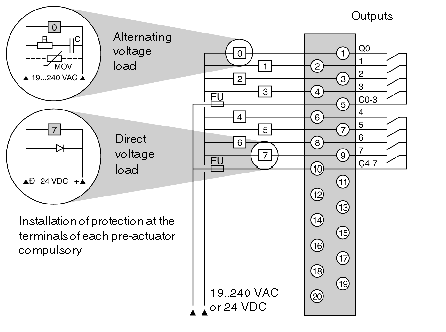

The diagram below shows the connection of the module to the pre-actuators.
