At a Glance
The BMX DAI 0805 module is fitted with a removable 20-pin terminal block for the connection of eight input channels.
Input Circuit Diagram
The following diagram shows the circuit of an alternating current input.
Module Connection
| DANGER | |
|---|---|
HAZARD OF ELECTRICAL SHOCK, EXPLOSION OR ARC FLASH Switch off the sensor and pre-actuator voltages before
connecting or disconnecting the module. Failure to follow these instructions will result in death or serious injury. | |
| CAUTION | |
|---|---|
LOSS OF INPUT FUNCTION Install the correct type of fuse with the correct rating. Failure to follow these instructions can result in injury or equipment damage. | |

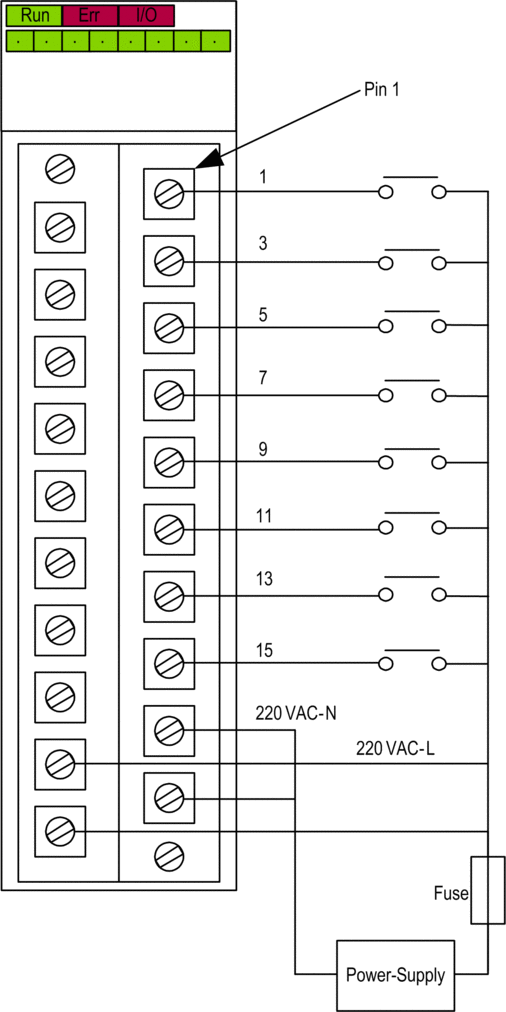

The following diagram shows the connection of the module to the sensors.
power supply: 200...240 VAC
fuse: fast blow fuse of 0.5A
