At a Glance

A discrete input/output module with a 40-pin connector can be connected to the TELEFAST 2 connection base with a connection cable.

Illustration

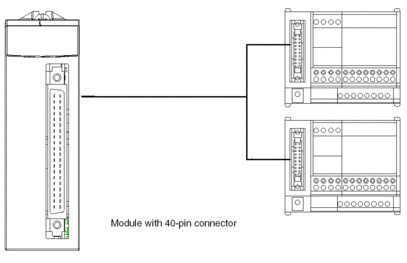

The following diagram shows the connection of a discrete input/output module with a 40-pin connector to a TELEFAST 2 connection base.

Illustration

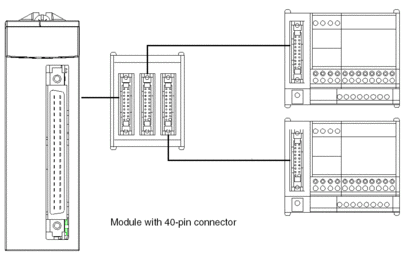

The following diagram shows an example specific to the connection of 16 channels in 2 x 8-channel groups via the ABE-7ACC02 adapter base.
