At a Glance
The BMX DDO 1602 module is fitted with a removable 20-pin terminal block for the connection of sixteen output channels.
Output Circuit Diagram

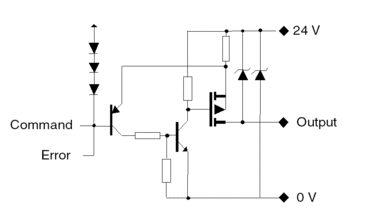

The following diagram shows the circuit of a direct current output (positive logic).
Module Connection
| DANGER | |
|---|---|
HAZARD OF ELECTRICAL SHOCK, EXPLOSION OR ARC FLASH Switch off the sensor and pre-actuator voltage before
connecting or disconnecting the module. Failure to follow these instructions will result in death or serious injury. | |
| CAUTION | |
|---|---|
LOSS OF OUTPUT FUNCTION Install the correct rating and type of fuse. Failure to follow these instructions can result in injury or equipment damage. | |

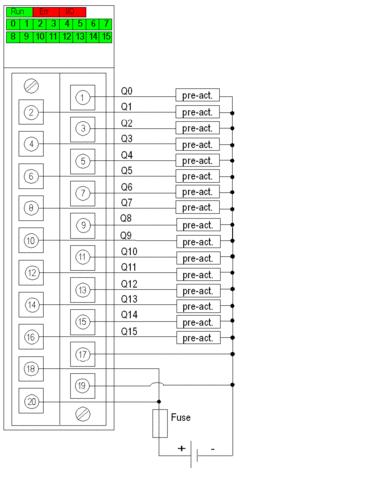

The following diagram shows the connection of the module to the pre-actuators.
power supply: 24 VDC
fuse: fast blow fuse of 6.3 A
pre-act: pre-actuator
