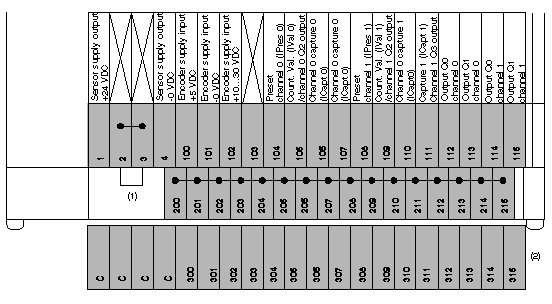

The connection base below represents the connection base of the ABE-7H16R20 base.
(1) On the ABE-7H16R20 base, the position of the jumper wire determines the polarity of all the 2•• terminals:
-
jumper wire in position 1 or 2: terminals 200 to 215 have + polarity,
-
jumper wire in position 3 or 4: terminals 200 to 215 have - polarity.
(2) On the ABE-7H16R20 base, it is possible to add an optional ABE-7BV20 bar to create a second shared sensor (+ or - according to users choice).
