With a TELEFAST 2 (ABE-7H16R20) connection base, a 20 pin HE10 type connection can be converted into a screw connection base connection, so that sensors and supplies can be quickly connected to the auxiliary inputs of the TSX CTY 2A / 4A / 2C counting modules.

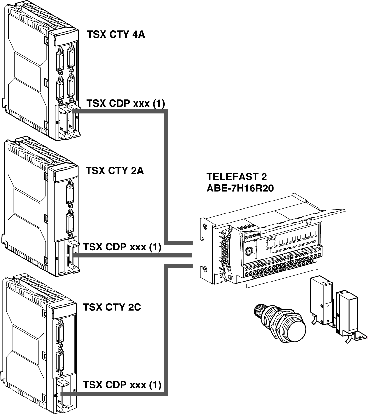

This diagram shows the connection of a TELEFAST to the counting modules:
(1) TSX CDP ••2 or TSX CDP ••3 cable.
