Connecting Sensors and their Supply
(Original Document)
About us

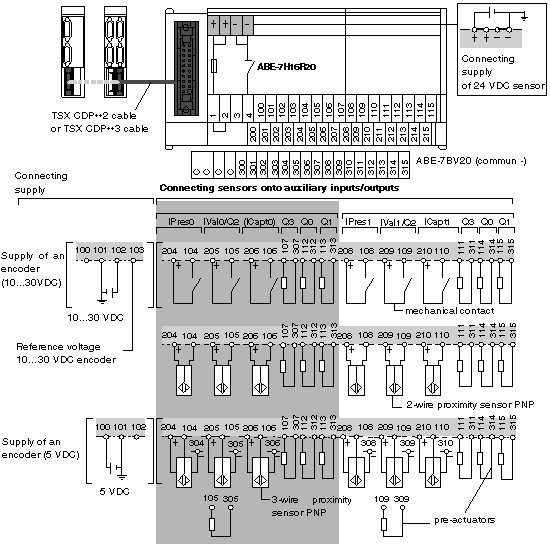

Diagram of the principle
This connection is made using a TELEFAST 2 connection base with the reference no. ABE-7H16R20:
NOTE:
The connection of channels 2 and 3 of a TSX CTY 4A module is exactly the same as for channels 0 and 1.
