Connecting the TELEFAST 2 base: ABE-7CPA11
(Original Document)
About us

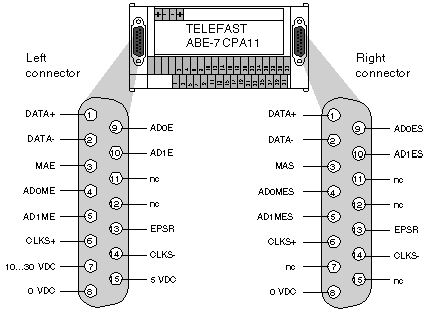

15 pin SUB-D connector pinouts
Illustration:
Key:
Supply
0 VDC
8
10...30 VDC
7
0 VDC
15
Addressing the encoders
  • inter-TELEFAST bus (Input):
AD0E
9
AD1I
10
AD0MI
4
AD1MI
5
MAI
3
Encoder supply return EPSR
13
Serial link
  • data outputs:
DATA+
1
DATA-
2
  • clock inputs:
CLKS+
6
CLKS-
14
Key:
Supply
0 VDC
8
Addressing the encoders
  • inter-TELEFAST bus (Output):
AD0IO
9
AD1IO
10
AD0MIO
4
AD1MIO
5
MAO
3
Encoder supply return EPSR
13
Serial link
  • data outputs:
DATA+
1
DATA-
2
  • clock inputs:
CLKS+
6
CLKS-
14
