Connecting an encoder to a TSX CTY 2A / 4A / 2C module
(Original Document)
About us
Illustration

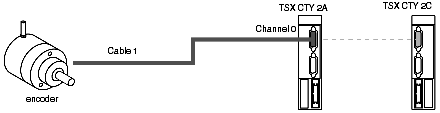

Process diagram:
Example for connecting an incremental encoder with RS 422 / RS 485 line transmitter outputs
Encoder characteristics
supply voltage: 5 VDC,
output voltage: 5 VDC differential,
high-level output: line transmitter, RS 422 / RS 485 standard.
Process diagram:

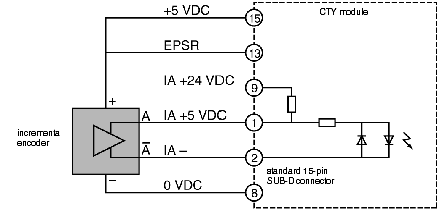

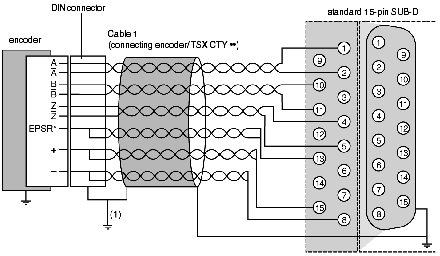

Channel connection diagram:
*EPSR: supply feedback of the encoder,
(1) link directly if the encoder is grounded.
