Compatibility of IA, IB and IZ inputs
(Original Document)
About us
Illustration 1
RS 422 / RS 485 line transmitter outputs, 7 mA current loop Differential line monitor on each input.

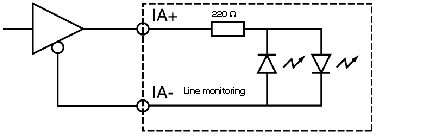

Illustration 2
Additional Totem Pole outputs, 5 V supply. Differential line monitor on each input.
