'Converter error' message in the analysis procedure

Introduction

The Converter error message appears in the output window if:

NOTE: You must correct the errors generated by the conversion then save application and analyse the converted project.

Illustration

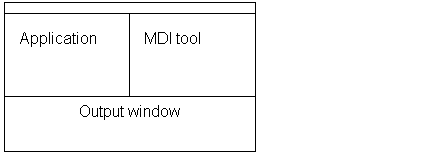

The following diagram shows the Control Expert software screen at the end of the procedure of analyzing a PL7 application or a converted PL7 .

Description

The following table describes the various parts of the Control Expert screen.

Part	Description
Application	Browser of the converted PL7 application or the Control Expert application into which you are importing the converted PL7 DFB.
Output window	Window containing all conversion or analysis error messages.
"Converter error"	Message displayed if you have to manually correct part of the program of the converted application or DFB. By double-clicking on the left button of the mouse on the word "Converter error", you access the MDI tool.
MDI tool	The part of the program to be corrected associated with the "Converter error" message is displayed in the field. You can correct the error directly in the MDI tool using Control Expert commands.
