For an intra-station exchange to take place (i.e. an exchange between two stations on the same network or on different networks), the address must also show the destination entity’s network number and station number.

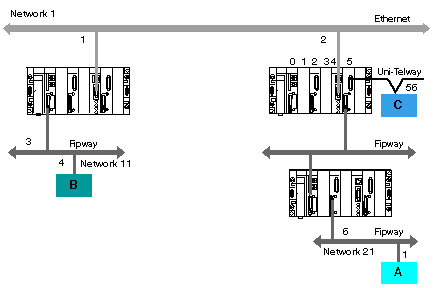

The multi-network configuration is as follows:
In the first case, station B addresses station A's system:
ADDR('{21.1}SYS')
In the second case, station B addresses station C:
ADDR('{1.2}0.5.0.56')

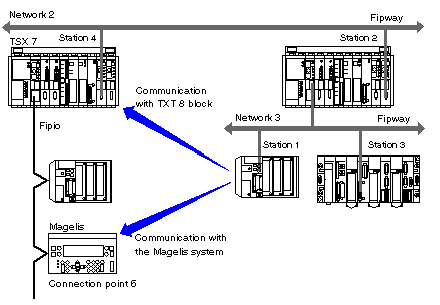

The example below shows how to access a Magelis system connected to a Fipio bus (connection point 6) and communicate with text block TXT 8 on a model 40 programmable PLC connected to network 2.
The address of the TXT 8 text block on the TSX 7 PLC station 4 is:
ADDR('{2.4}APP.8')
The address of the Magelis system is:
ADDR('{2.4}\2.6\SYS')
