Declaring the TSX PBY 100 module and accessing application screens
|
|
|
(Original Document)
|
|
Step
|
Action
|
|---|---|
|
1
|
Open the hardware configuration editor.
|
|
2
|
Select the slot where you wish to insert the module.
|
|
3
|
Select the New Device command from the contextual menu.

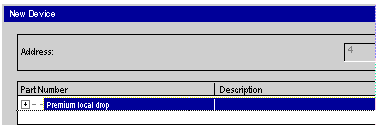

Result: the New Device appears.
 |
|
4
|

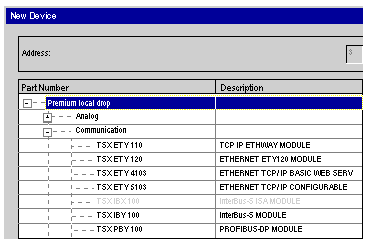

Develop the Premium local drop line and the Communication line by clicking on the + sign.
Result:
 |
|
5
|
Select the TSX PBY 100 module then validate by clicking OK.
|
|
6
|
In the X Bus window, select the TSX PBY 100 module.
|
|
7
|
Select the Open Module command from the contextual menu.
Result: the configuration screen of the module appears.
|
