Cable Adapter Kits for RJ45
You may want to purchase Cable Adapter Kits for your RJ45 (8x8) requirements rather than make them. The table below provides a list of available kits.
Available Cable Adapter Kids
Description |
Part Number |
|---|---|
RJ45-(8x8) to 25-Pin (Male) |
110XCA20401 |
RJ45-(8x8) to 9-Pin (Male) |
110XCA20301 |
RJ45-(8x8) to 9-Pin (Female) |
110XCA20302 |
RJ45-(8x8) to 25-Pin (Female) |
110XCA20402 |

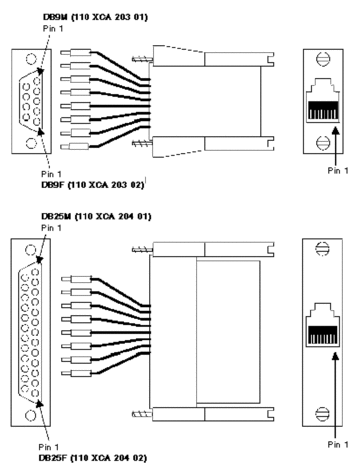

DB to RJ45 Adapter Kits

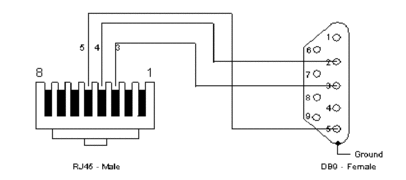

Cable Connection Example 1
For standard terminal operating at low speeds or using software flow control, a simple 3-pins connection can be used.
RJ45 to DB9
PLC Quantum |
Modem Connector |
||
|---|---|---|---|
RJ 45 |
DB9 |
||
RJ45-3 |
TXD |
RXD |
DB25-2 |
RJ45-4 |
RXD |
TXD |
DB-25-3 |
RJ45-5 |
GND |
GND |
DB25-5 |

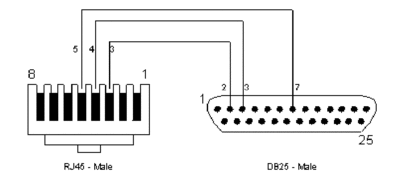

Connection Example 2
RJ45 to DB25
PLC Quantum |
Modem Connector |
||
|---|---|---|---|
RJ 45 |
DB25 |
||
RJ45-3 |
TXD |
RXD |
DB25-3 |
RJ45-4 |
RXD |
TXD |
DB-25-2 |
RJ45-5 |
GND |
GND |
DB25-7 |
