At a Glance

Until now, the examples have been written using direct addressing (use of %MWi), but it is also possible to create these same examples using unlocated variables.

The following example uses unlocated variables, and covers the writing of a 50-word table named Tab_1 (declared as an ARRAY [0..49] OF INT) in the Uni-Telway slave, with the address:

  • Network 20

  • Station 1

  • SCM2116 module in a TSX 87 in slot 5 of the base rack

  • Channel 1

  • Server address of slave Ad0 = 3.

The values to write are in the variable Tab_1 of the sender.

The management parameters are located in a table of 4 integers called Management_Parameter (declared as ARRAY [0..3] OF INT).

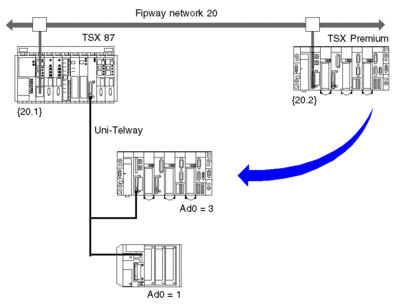

Illustration

The two stations are connected via a Fipway network.

Programming

Programming in ST:

IF RE(%I0.3.1) AND NOT Management_Parameter[0].0 THEN
   WRITE_VAR(ADDR(’{20.1}0.5.1.3’),’%MW’,0,50,Tab_1,Management_Parameter);
END_IF;

Request parameters:

Parameters

Description

ADDR(’{20.1}5.1.3’)

  • {20.1}: network 20, station 1

  • 0: rack

  • 5: module

  • 1: channel 1

  • 3: destination address

’%MW’

Type of object (internal word)

0

address of the first object to write

50

Number of consecutive objects to write

Tab_1

Data to write

Management_Parameter

Management table
