Data terminal equipment is the term used to describe devices such as:
-
Common peripherals (printer, keyboard-screen, workshop terminal, etc.),
-
Specialized peripherals (barcode readers, etc.),
-
PCs.
All data terminal equipments are connected to a BMX P34 1000/2000/2010/20102/2020 processor by a serial cross cable using the RS232 physical link.
Connecting Data Terminal Equipment

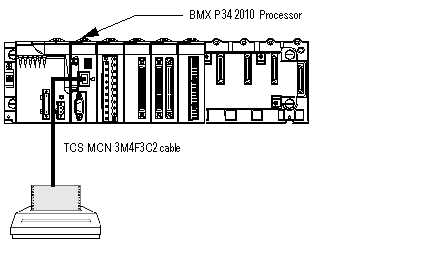

The illustration below shows how a printer is connected to a BMX P34 2010 processor:
The communication protocol used is Character Mode.
NOTE: Only one item of data terminal equipment may be connected to each BMX P34 1000/2000/2010/20102/2020 processor.
RS 232 Serial Cross Cable
The TCS MCN 3M4F3C2 serial cross cable has two connectors:
-
RJ45 male
-
Nine-pin SUB-D female

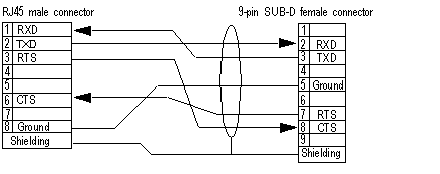

The illustration below shows the pin assignment for a TCS MCN 3M4F3C2 serial cross cable:
Connecting Cables and Accessories
The table below shows the product references of the cables and adapters to be used according to the serial connector used by the data terminal equipment:
|
Serial Connector for Data Terminal Equipment
|
Wiring
|
|
Nine-pin SUB-D male connector
|
TCS MCN 3M4F3C2 cable
|
|
25-pin SUB-D male connector
|
-
TCS MCN 3M4F3C2 cable
-
TSX CTC 07 adapter
|
|
25-pin SUB-D female connector
|
-
TCS MCN 3M4F3C2 cable
-
TSX CTC 10 adapter
|
