Connecting to Modbus Full-Duplex in Premium Hot Standby Configuration
(Original Document)
About us
General
Two Premium PLCs in a Hot Standby configuration are connected in Full-Duplex mode to the common target through TSX SCP 114 cards an a branching device TSX SCA 64.
NOTE: TSX SCP 114 card version must be ≥ V3.3
Wiring Connection Example

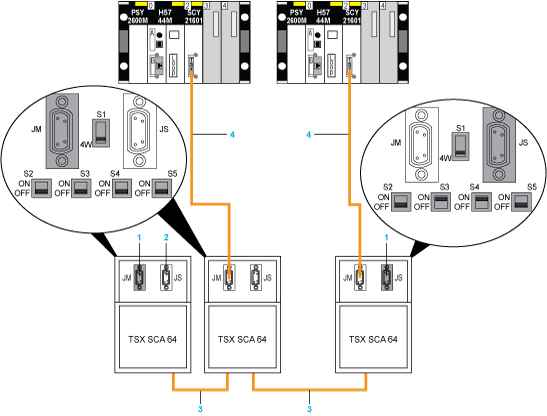

The following drawing shows an example wiring connections for two Premium PLCs in a Hot Standby configuration to the Modbus bus in Full-Duplex mode:
1
TSX SCA 10 End of line adaptor
2
Slave
3
Bus
4
TSX SCP CM 4530
