Multi-protocol asynchronous link connection RS 422
(Original Document)
About us
General
Connecting the TSX SCP 114 card in Character Mode does not require any specific accessories.
The product reference for the RS 485/RS 422 PCMCIA card linking cable is TSX SCP CX 4030. It is 3 meters in length.
Type of connection

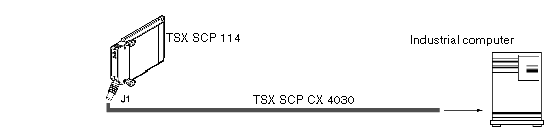

The TSX SCP 114 PCMCIA card is connected in point to point to an RS 422A standard device VAX station type.
Illustration:

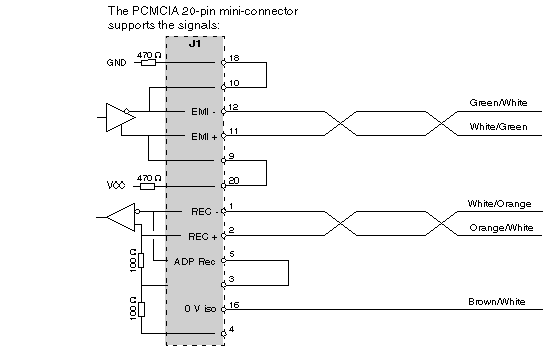

Description of the TSX SCP CX 4030 cable
Illustration:
See also Character Mode Connection for TSX_SCY_21601 (TSX SCY 21601 module integrated link)
