Connecting the Shielding to the Local Ground at One End and Isolating it From the Ground at the Other End
(Original Document)
About us
Principle

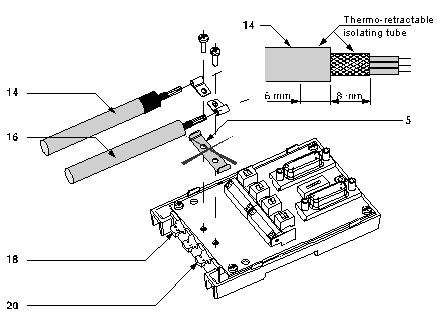

Only cable 16 shown is connected to the local ground. Cable shielding 14 shown is isolated from the ground by a thermo-retractable tube (not included).
NOTE: In this case, ground link 5 shown is not used.
Illustration
This diagram shows the principle for locally grounding the cable.
Connecting several devices together:
