Connecting the Shield to the Local Ground and to the Two Ends of the Cable (Recommended Cable Type)
(Original Document)
About us
Principle
The two grounding tracks should be linked via the ground link 5 shown. End devices differ in that they only have one cable. Where this is the case, the ground link 5 shown is not required as long as the cable is positioned in slot 20 shown in the diagram.
Illustration

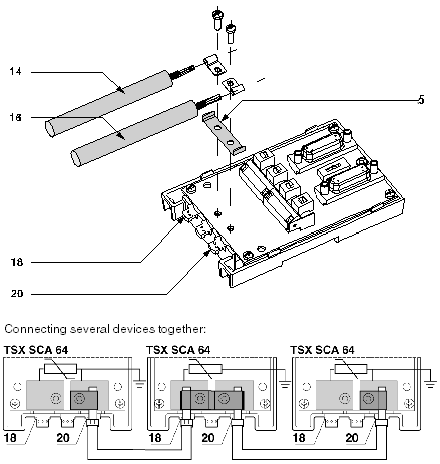

This diagram shows the principle for locally grounding the cable.
