The TSX SCA 64 unit is a cabling accessory, which allows a 2 or 4 wire mode communication module to be connected to a Modbus, Jbus, or Jnet.
In this mode, connectable communication interfaces are:
-
built-in channel of the TSX SCY 11601/21601 modules, via a TSX CM 6530 cable
-
TSX SCP/JNP 114 PCMCIA card, via a TSX SCP CM 6530 cable
NOTE: Connection can be made to either the JM or the JS connector, regardless of channel configuration (master or slave).

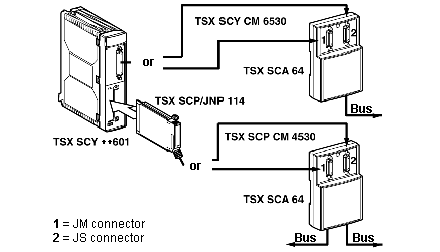

This diagram shows the general principal for connecting in 2-wire mode for a TSX SCY 21601.
In this mode, the connectable communication interface is:
Connect the TSX SCP CM 6530 cable to the:

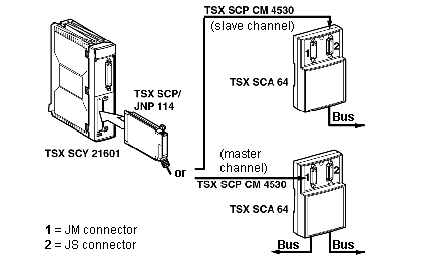

This diagram shows the general principal for connecting in 4-wire mode.
