TSX SCY 11601 Module: General

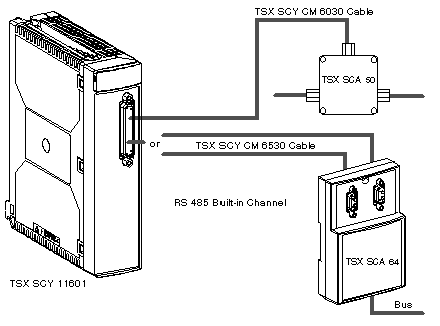

Cabling accessories designed to connect the TSX SCY 11601 module's RS 485 base link allow the following connection:
Illustration:
TSX SCY 11601 Module: General

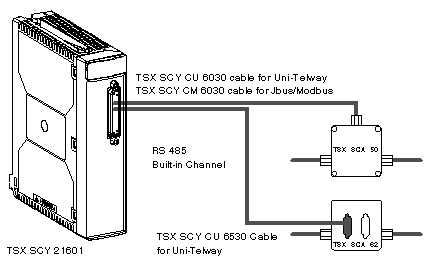

Cabling accessories designed to connect the TSX SCY 21601 module's RS 485 base link allow the following connections:
-
Connection to the Uni-Telway network via a TSX SCA 50 device by a TSX SCY CU 6030 cable or a TSX SCA 62 device by a TSX SCY CU 6530 cable
-
Connection to the Modbus network via a TSX SCA 50 device by a TSX SCY CM 6530 cable
-
Connection to standard RS 485 devices using a link adapted connector via the TSX SCY CU 6030 or TSX SCY CM 6030cable
Illustration:
