Connection of TSX SCY 21601 to Uni-Telway Field Bus
(Original Document)
About us
General
The module's built-in communication channel is connected to the Uni-Telway field bus by the
TSX SCY CU 6030
connection cable, via the
TSX SCA 50
connection device.

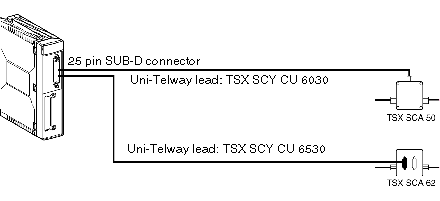

Illustration:
Description of Leads

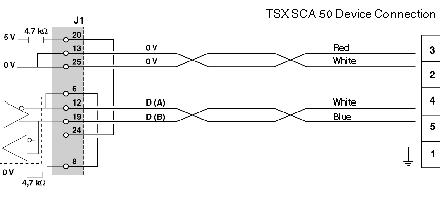

Lead TSX SCY CU 6030:
Lead TSX SCY CU 6530:
