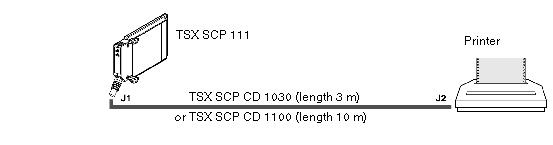

The TSX SCP 111 RS 232 physical support card is inserted either in the processor or in the TSX SCY 21601 module. It is connected to the related device with the TSX SCP CD 1030/1100 cable.
The devices to be connected are DTE to DTE (Data Terminal Equipment). For example: terminal, printer, etc.
Illustration:

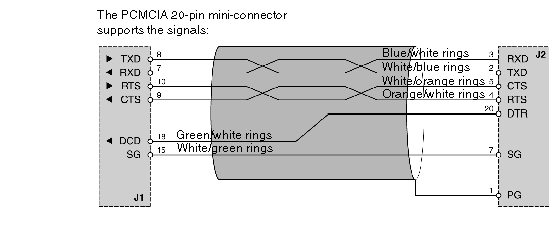

Description of TSX SCP CD 1030 Cable
Illustration:
