Uni-Telway, Modbus or Character Mode via Modem
(Original Document)
About us
General
The PCMCIA card is connected to a Uni-Telway, Modbus or Character Mode bus, via a modem and a telephone link (DTE/DCE type), using a
TSX SCP CC 1030
cable.
The connected devices are DCE type, for example a modem or a converter.

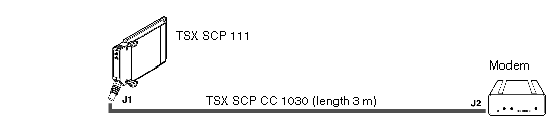

Illustration:

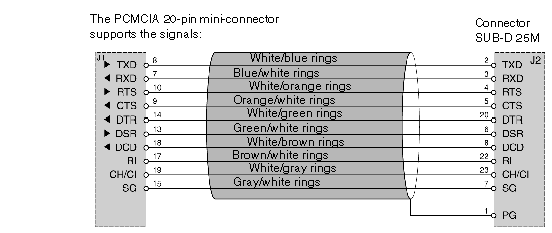

Description of the TSX SCP CC 1030 cable
Illustration:
