How to Access the Modbus Parameters of the Built-in Channel of the TSX SCY 11601/21601 Modules
(Original Document)
About us
At a Glance
This operation describes how to access the configuration screen of the built-in channel Modbus link (channel 0) of modules TSX SCY 11601/ 21601 for Premium PLCs.
NOTE: For TSX SCY 11601, given that there is only one channel (Channel 0) and one link ( Modbus/JBUS ), channel 0 is configured by default.
How to Access the Link
The following table shows the steps to follow in order to access the Modbus link:
Step
Action
1
Open the hardware configuration editor.
2
Double click on the TSX SCY 11601 or TSX SCY 21601 module.
3

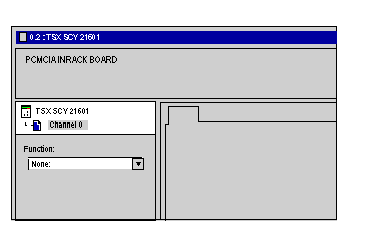

Select channel 0.
Result:
4

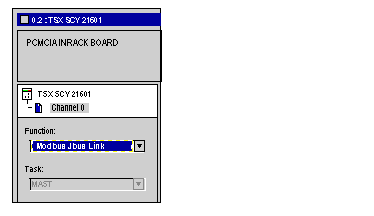

Select the function JBUS MODBUS LINK . For TSX SCY 11601, the Modbus function is set by default.
Example:
