How to Access PCMCIA Modbus Card Parameters
(Original Document)
About us
At a Glance
This operation describes how to access the configuration screen of a PCMCIA card Modbus link for Premium PLCs.
How to Access the Link
The following table shows the steps to follow in order to access the Modbus link:
Step
Action
1
Open the hardware configuration editor.
2
Double click the PCMCIA card slot.
Result: The card type selection window appears.
3

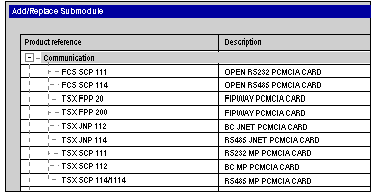

From the menu, click on one of the following PCMCIA cards then validate by clicking OK.
  • TSX SCP 111
  • TSX SCP 112
  • TSX SCP 114/1114
4
Double click the PCMCIA card slot.

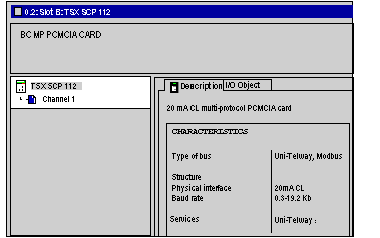

Result:
5
Select channel 1.
6
Select the function MODBUS LINK.

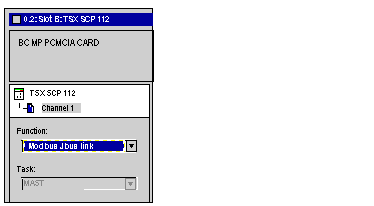

Example:
