How to Access the Parameters of the Built-in Channel of the TSX SCY 21601 Module
(Original Document)
About us
At a Glance
This part describes how to access the configuration parameters of the Uni-Telway link through the built-in channel of a TSX SCY 21601 module for the Premium.
How to Access the Link
The following table shows the steps to follow in order to access the Uni‐Telway link:
Step
Action
1
Open the hardware configuration editor.
2
Double click on the TSX SCY 21601 module.
3
Select channel 0.

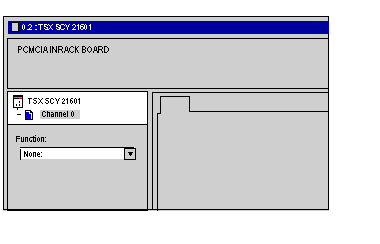

Result:
4
Select the function UNI-TELWAY LINK.

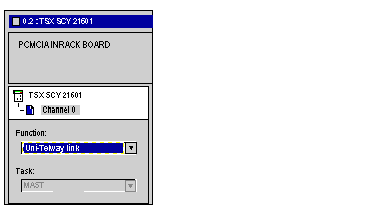

Example:
