At a Glance
This part describes how to access the configuration parameters of the Uni-Telway link through PCMCIA cards for Premium PLCs.
How to Access the Link
The following table shows the steps to follow in order to access the Uni‐Telway link:
Step
Action
1
Open the hardware configuration editor.
2
Double click the PCMCIA card slot.

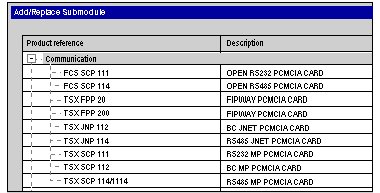

Result: The card type selection window appears.
3
From the menu, click one of the following PCMCIA cards then validate by clicking OK.
  • TSX SCP 111
  • TSX SCP 112
  • TSX SCP 114/1114
4

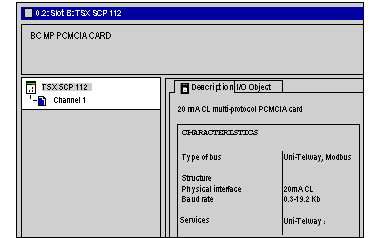

Double click the PCMCIA card slot.
Result::
5
Select channel 1.
6

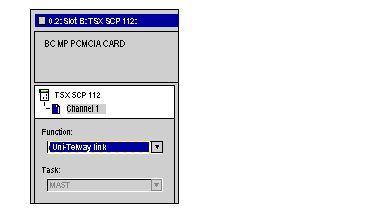

Select the function UNI-TELWAY LINK.
Example:
