How to Access the Terminal Port Parameters
(Original Document)
About us
At a Glance
This part describes how to access the configuration parameters of the character mode link through the terminal port.
How to Access the Link
The following table shows the steps to follow in order to access the character mode link:
Step
Action
1
Open the hardware configuration editor.
2
Double click on the Terminal Port slot on the CPU.
3
Select the function CHARACTER MODE LINK .

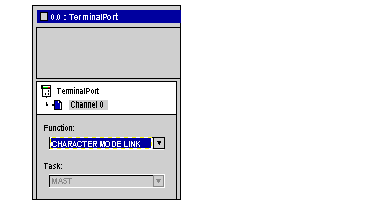

Example:
