Examples of using the IBS Start and IBS Fault acknowledgment commands
(Original Document)
About us
IBS Start

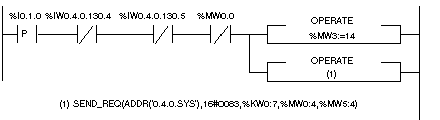

The following figure shows an example of an IBS Start command.
NOTE: In this example, it is assumed that at least 242 exchange words have been configured.
The following table describes the coding of data of the function.
Parameters
Variables
Values
Address
-
ADDR(‘0.4.0.SYS’)
Request code
-
16#0083
Data to be sent
%KW0:7
16#1807
16#0500
16#0000
16#FF00
4 (decimal)
16#0701
16#0000
Report
%MW0:4
-
Reception zone
%MW5:4
-
NOTE: The request for starting the bus is conditioned by %IW0.4.0.130.4 and bit 5 (no operating detection error and no cyclic exchange).
IBS Acknowledgment
The following figure shows an example of an IBS fault acknowledgment command.
The following table describes the coding of data of the function.
Parameters
Variables
Values
Address
-
ADDR(‘0.4.0.SYS’)
Request code
-
16#0083
Data to be sent
%KW10:7
16#1807
16#0500
16#0000
16#FF00
4 (decimal)
16#0760
16#0000
Report
%MW10:4
-
Reception zone
%MW15:4
-
