At a Glance
The creation of a project implementing Fipio Agents requires you to configure the communication channel of the PLC declared as a Fipio Agent.
This part describes how to access the configuration parameters of the Fipio Agent link using the TSX FPP 10 PCMCIA card for Micro/Premium PLCs.
How to Declare the Fipio PCMCIA Card
The following table shows the procedure for physically declaring the Fipio PCMCIA card on the PLC:
Step
Action
1
Open the hardware configuration editor.
2
Double-click the PCMCIA communication card slot (bottom slot).

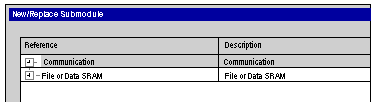

Result: The card type selection window appears
3

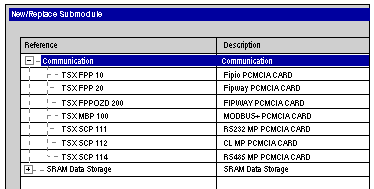

Expand the Communication line by clicking on the + sign.
Result:
4
Select the TSX FPP 10 Fipio card and then confirm with OK.
Result: the hardware configuration editor is displayed with the configured card.
5

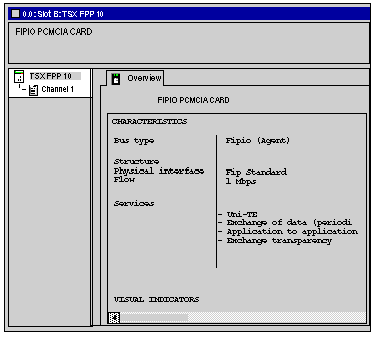

Double click on the processor's PCMCIA communication card.
Result:
6

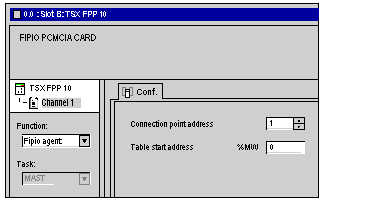

Select the channel and choose the Fipio AGENT function.
Result:
