How to Modify the Debug Parameters for a Standard Profile
(Original Document)
About us
At a Glance
The following procedures are applicable for debug parameters.
How to Modify the Display Base
The following procedure describes how to select the display base. In the example, the chosen base is binary.
Step
Action
1
In the Parameters in progress area, select the Value cell of the word to be modified.
2
Select Binary from the contextual menu (right-click).
Result: the cell displays 2#1011 0000 0000 0000.
How to Enter a Value Using the Keyboard
The following procedure describes how to enter a value in a cell using the keyboard.
Step
Action
1
In the Parameters in progress area, select the Value cell of the word to be modified.
2
Enter the value using the keyboard.
Note: keyboard entry depends on the display base.
How to Enter a Value in Binary Format
The following procedure describes how to enter a value in binary format. It is only valid for outputs.
Step
Action
1
Double click on the Value cell in the Parameters in progress area of the word to be modified.

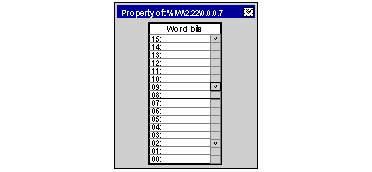

Result: the following window appears.
2
Select the bits to be set to 1.
3
Close the Properties ... window by clicking on the cross in the top right-hand corner of the window.
Result: Closing the window confirms the entered value and it is displayed in the cell format.
