Physical introduction
(Original Document)
About us
General
The TBX SAP 10 module comes as a TBX Monobloc (IP20) comprised of a single element with no extension possibilities.
The Fipio connection point address is assigned using 8 micro‐switches.
At a Glance
The TBX SAP 10 monobloc module is comprised of:

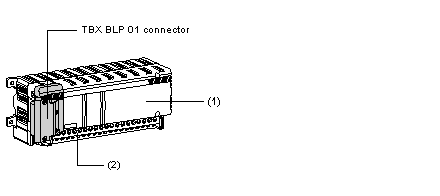

The following drawing shows the TBX SAP 10 monobloc module.
The TBX BLP 01 connector allows the module to be connected to the Fipio network.
Physical Description

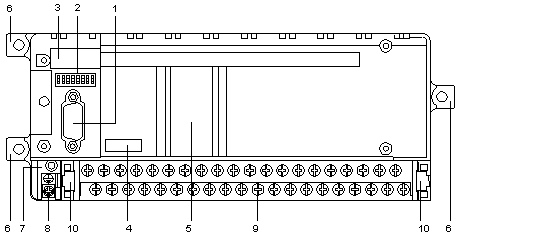

The following drawing shows the details of the TBX SAP 10 monobloc module.
The following table shows the different elements of the TBX SAP 10 monobloc module.
Number
Description
1
A 9 pin SubD male connector for connection to the Fipio bus, via the TBX BLP 01 connector.
2
8 micro‐switches for coding the Fipio connection point address.
3
Help label for coding of the Fipio connection point address.
4
Slot for a client label showing connection point address and the module number.
5
Display panel.
6
Module fixing lugs.
7
Identification label showing the type of module channels.
8
Stirrup screw for grounding the product.
9
Removable screw terminal block (with terminal block label) for wiring the AS-i bus and the module power supply.
10
Extractors for removing the terminal block.
